SAFE - Presence control terminals

Mirror-Terminal for Presence Detection and Access Control




Terminali Biometri e RFID per raccolta dati di controllo accessi e rilevazione presenze

Mirror is the new presence control terminal by Indaco Project for Access Control and Data Collection.
Mirror is designed to offer Companies not only a different technological choice, but also an aesthetic choice, a choice of innovation, "reflecting" the company style:

  • customizable in 6 different styles
  • it has a backlit colour display and touch screen to display the clocking in/out made, enter pin codes for access control and reasons for presence detection directly from the terminal
  • It fits different personnel identification technologies (RFID, Mifare and biometric proximity readers) and access gates.
  • suitable for outdoor installation as it is designed with a watertight enclosure
  • It interfaces with the ND24 Personnel Management and Web Presence detection suite and Sesamo access control suite
  • possibility of integrated Wi-Fi

MADE IN ITALY FUNCTIONALITY AND DESIGN
When you choose MIRROR, you are installing not only an efficient system but also an industrial design element entirely Made in Italy that characterizes the style and image of the company.



CHOOSE MIRROR IN THE COLOUR THAT REFLECTS YOUR COMPANY

Technical features:

  • ABS and Polycarbonate Watertight Moulded Container
  • Ethernet 10/100 TCP/IP, UDP, FTP interface
  • Two relays
  • 240 x 320 TFT colour backlit LCD display and touchscreen
  • RFID 125 KHz, 13.56 Mhz/NFC MiFare, biometric
  • Touchscreen
  • 512 MB DDR3
  • Cortex A8 1 GHz
  • USB 2.0 ports
  • 220 Vac internal power supply
  • Size 165 x 158 x 60 mm

PLANET20



Planet20_marcatempo_rilevazione_presenze_timbrature

Il Terminale Planet 20 è dotato di display e tastiera per l’inserimento di eventuale codice Pin.

Come tutti i terminali di Raccolta Dati proposti da Indaco Project, anche Planet 20 è totalmente integrato negli applicativi Software sviluppati. Inoltre, grazie all'esperienza maturata sul campo e la conoscenza approfondita degli apparati hardware, Indaco Project è in grado di sviluppare procedure firmware customizzate sul cliente.


Caratteristiche Tecniche:
Contenitore in plastica ABS e Policarbonato
Doppia Antenna Mifare 13,56 MHz
Interfaccia ethernet 10/100 TCP/IP, UDP, FTP
Due relè per attivazione sirene, apertura porte
LCD Mono 128x64 pixel, retroilluminazione a led bianchi
Tastiera a 16 pulsanti
128 MB di memoria RAM DDR2
Microprocessore CortexA8 800 MHz
Audio stereo polifonico
Tastiera a membrana 20 tasti
Alimentazione PoE oppure 9-36 Vdc con alimentatore esterno
Dimensioni 165x158x60

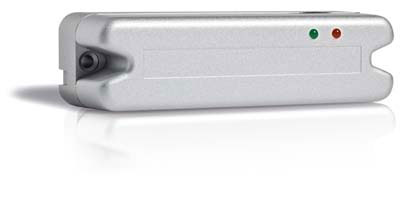

Access Control Terminals - SAT and SAT LIVING




SAT and SAT LIVING are the door remote control terminals used in indoor and outdoor access control systems connected to Planet or as Stand Alone version terminals, i.e. independently from the Sesamo software: in this case the badge list is loaded directly inside the terminal.

SAT is available in a version with ISO Standard Tk2 magnetic reader or Transponder Antenna with integrated 125 KHz standard.
The primary relay is present on board and is used to control the gates located in protected areas. In the case of outdoor applications, it is better to remotely install the activation relay to avoid burglary attempts.





TECHNICAL CHARACTERISTICS:

Container

Moulded in ABS and Polycarbonate

Magnetic Reader

RFID integrated

Interface

RS485 or Ethernet for connection to Planet20 or Smile Touch

No. 1 Relay

For door opening

Power supply

9-36 Vdc

Operation

On Line, Off Line

SIZE

130 x 38 x 46 mm

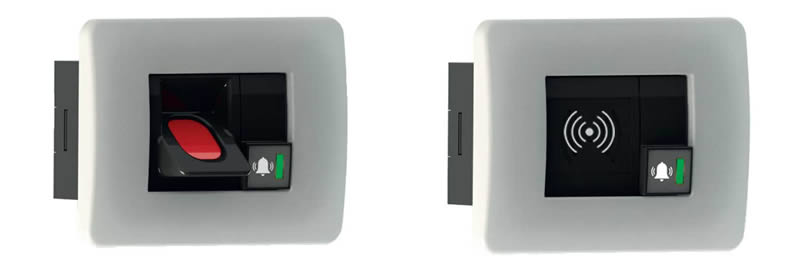

SAT LIVING è il terminale di controllo accessi facile da installare tramite integrazione alla scatola elettrica ad incasso.
La cornice, che può essere scelta fra più colori, ne completa l'aspetto e la personalizzazione.

Disponibile nelle due versioni con lettore magnetico o con lettore biometrico, può essere installato sia in interno che in esterno e collegato opzionalmente in wi-fi.
